1. Install and Run Application

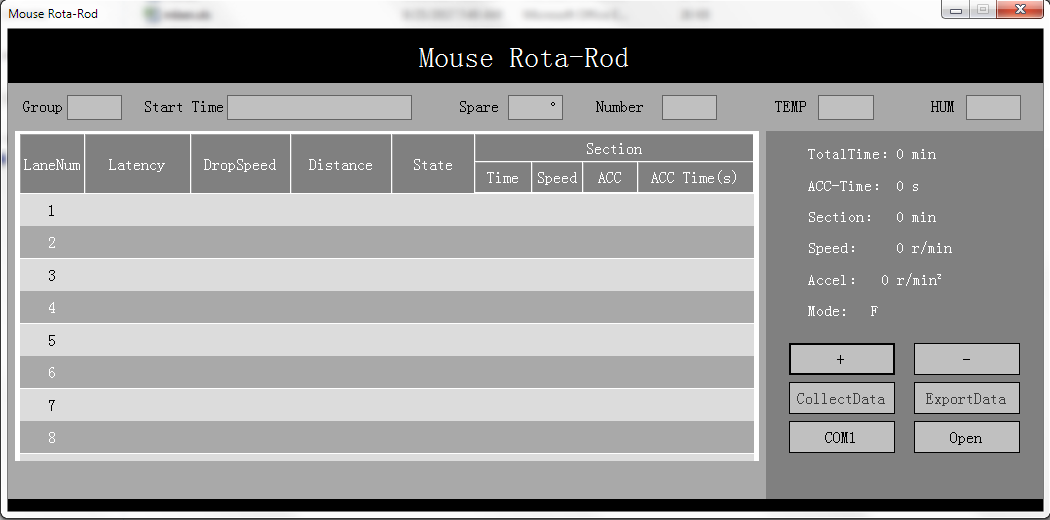

The main window appears as below:
Note: Windows .NET Framework 4.5 is required. The current PC/Laptop should have Windows .NET 4.5 or above installed.
To find the .NET version, follow the instructions at: https://docs.microsoft.com/en-us/dotnet/framework/migration-guide/how-to-determine-which-versions-are-installed#net_b
2. RotaRod Connection to Computer

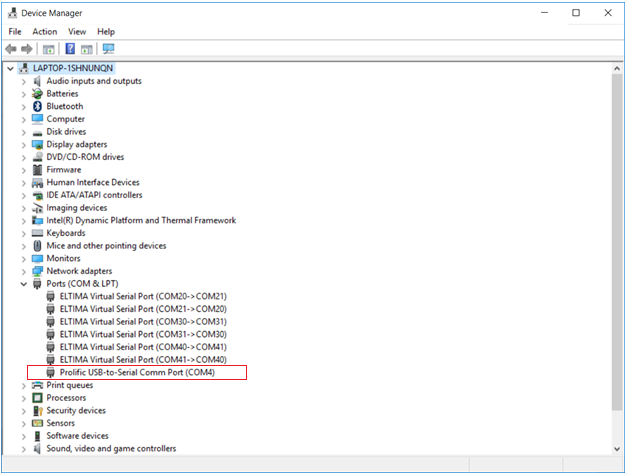

When the RotaRod is connected to your computer with the USB cable (USB to RS232 cable included in the shipment) and is powered on, a port is shown in the Device Manager:
If the device is not shown in the Ports section, it will appear in a different section. This is because the computer could not find the driver for the hardware device. In this case, you will need to install the driver (small disc in the box of UNITEK) which is included in shipment.

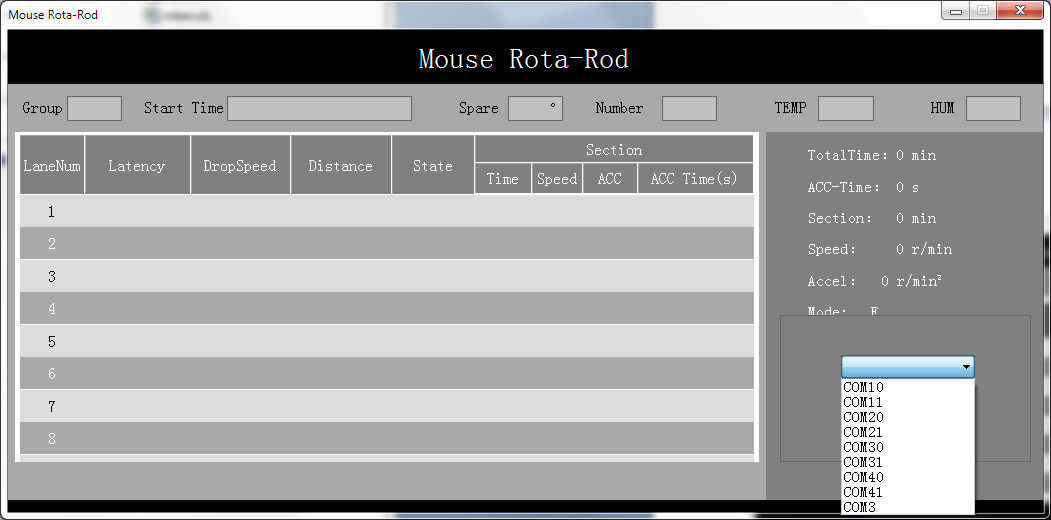

Once your computer recognizes RotaRod hardware, it is ready to establish the connection. Click on COM1, a list of available COM ports will be shown as below. Choose the correct COM port and then click on Port Open.
3. Browse and Export Data

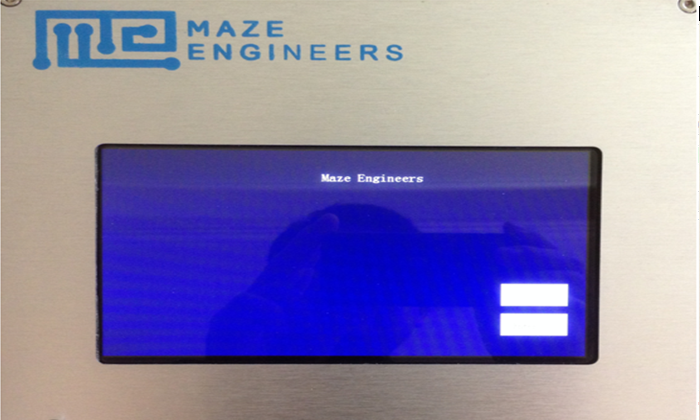

Once the connection is established and when the RotaRod LCD screen is in the open state as below:

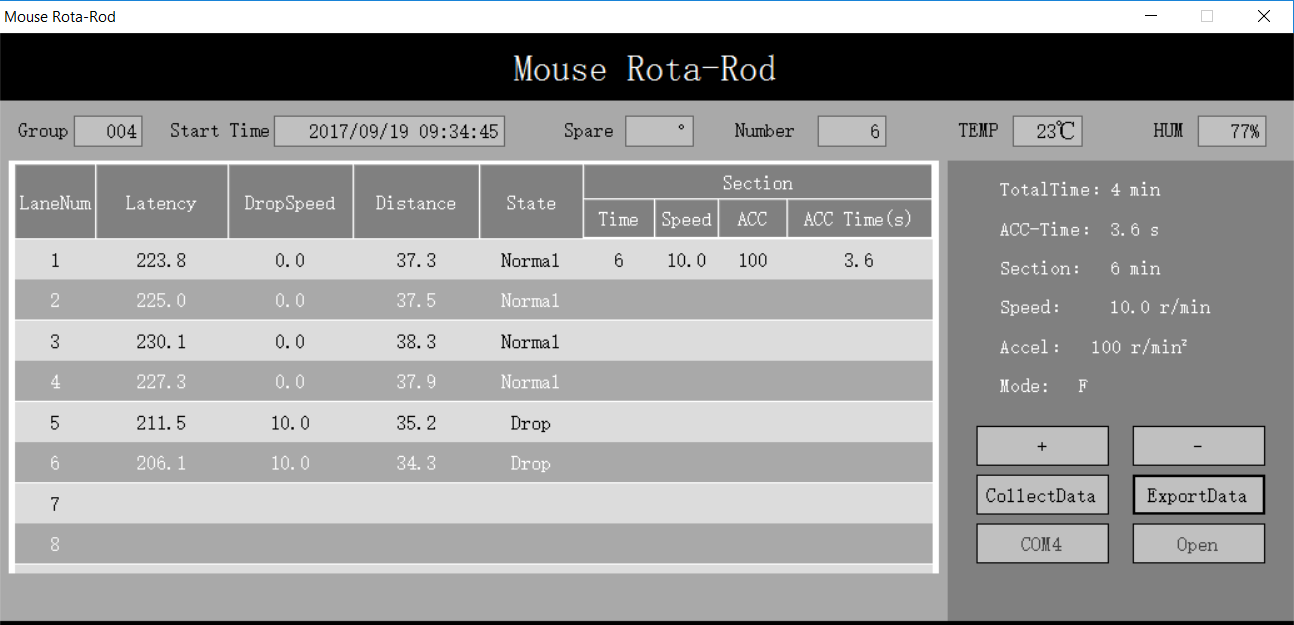

Click on Collect Data, and wait for a few seconds. The experiment results stored on the RotaRod will be uploaded to the software on PC.
Note: The "Collect Data" will not work when you navigate the screen any further. You can use + - to browse the data. To save a specific result to your computer, use Export Data to save the result in an Excel file.
